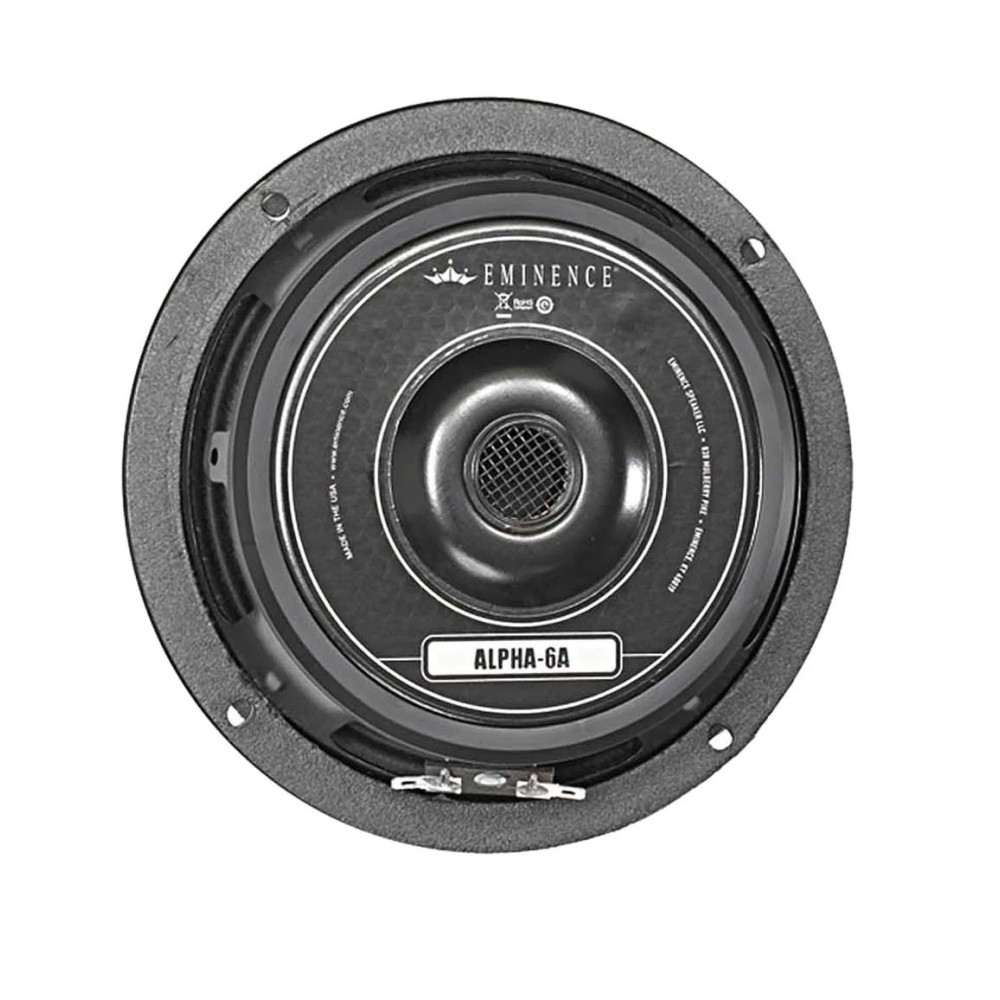

Alpha 6A - Eminence - 6" Midwoofer 8 ohm

86,60 €
Tasse incluse
Tempi di consegna variabili dai 4 ai 30 giorni

Midwoofer 6 pollici Eminence Alpha 6A, serie American Standard; ideale come midrange per sistemi audio professionali o come midwoofer in piccolo box reflex in diffusori satellite

·  Grandezza nominale driver: 6 pollici

·  Cono: carta

·  Magnete: ferrite

·  Bobina mobile: 38mm - rame - supporto ventilato

·  Cestello: acciaio

·  Sospensione: tela

·  Potenza: 100/200W

·  Sensibilità: 93.6 dB

·  Frequenza di risonanza: 103 Hz

·  Fattore di merito: 0.54

Quantità

Midwoofer 6 pollici Eminence Alpha 6A, serie American Standard; ideale come midrange per sistemi audio professionali o come midwoofer in piccolo box reflex in diffusori satellite

·  Grandezza nominale driver: 6 pollici

·  Cono: carta

·  Magnete: ferrite

·  Bobina mobile: 38mm - rame - supporto ventilato

·  Cestello: acciaio

·  Sospensione: tela

·  Potenza: 100/200W

·  Sensibilità: 93.6 dB

·  Frequenza di risonanza: 103 Hz

·  Fattore di merito: 0.54

Specifiche complete:

SPECIFICATION
Nominal Basket Diameter 6", 165 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 200 W
Watts 100 W
Resonance 103 Hz
Usable Frequency Range 95 Hz - 6 kHz
Sensitivity* 93.6 dB
Magnet Weight 20 oz.
Gap Height 0.25", 6.4 mm
Voice Coil Diameter 1.5", 38 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 103 Hz
DC Resistance (Re) 7.2 Ω
Coil Inductance (Le) 0.19m H
Mechanical Q (Qms) 5.68
Electromagnetic Q (Qes) 0.6
Total Q (Qts) 0.54
Compliance Equivalent Volume (Vas) 5.8 liters / 0.2 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 44 cc
Mechanical Compliance of Suspension (Cms) 0.26 mm/N
BL Product (BL) 8 T-M
Diaphragm Mass Inc. Airload (MMs) 7 grams
Efficiency Bandwidth Product (EBP) 159
Maximum Linear Excursion (Xmax) 3.5 mm
Surface Area of Cone (Sd) 126.7 cm2
Maximum Mechanical Limit (Xlim) 4 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed 2.8-5.7 liters / 0.1-0.2 cu.ft.
Vented 3.4-15.6 liters / 0.12-0.55 cu.ft.
Driver Volume Displaced 0.014 cu.ft. / 0.41 liters
Overall Diameter 6.59", 167.4 mm
Baffle Hole Diameter 5.65", 143.5 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.23", 5.8mm
Mounting Holes B.C.D. 6.06", 153.9mm
Depth 2.8", 71.1 mm
Net Weight 4.1 lbs, 1.86 kg
Shipping Weight 4.8 lbs, 2.18 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented and extended core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust ca
