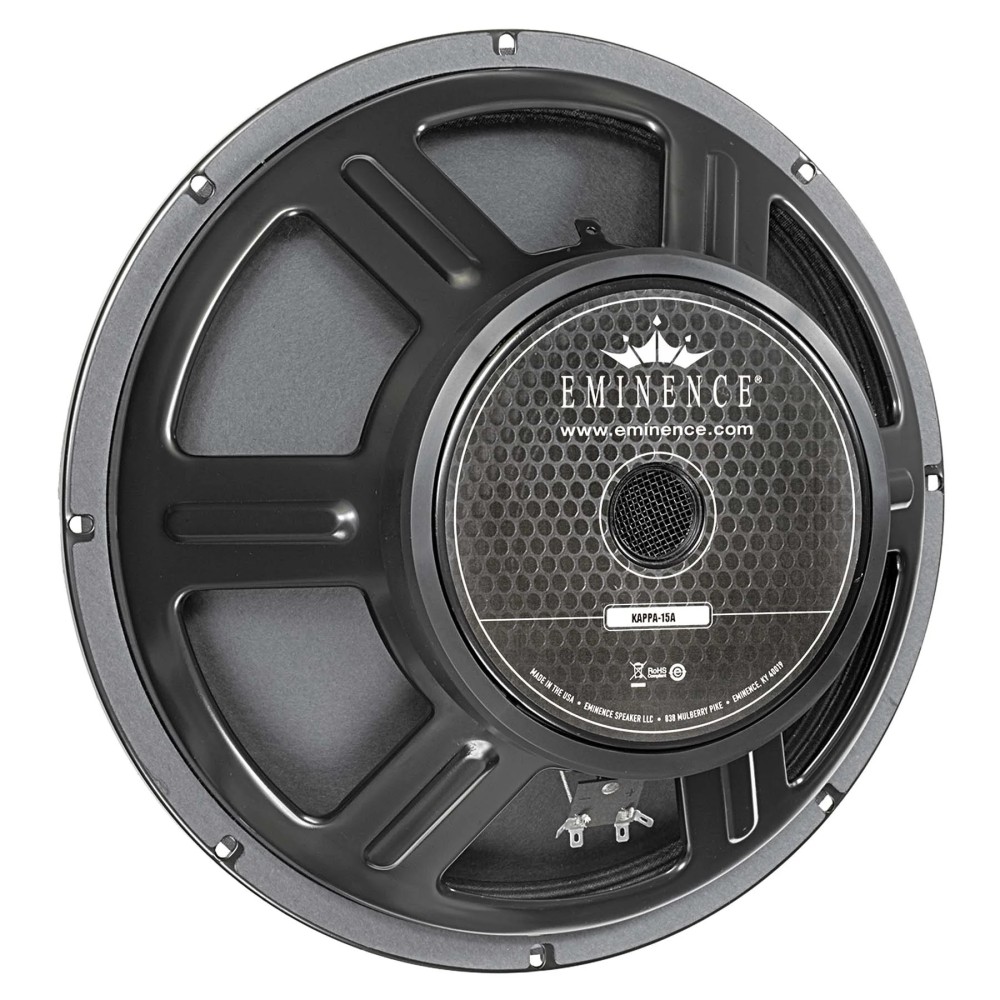

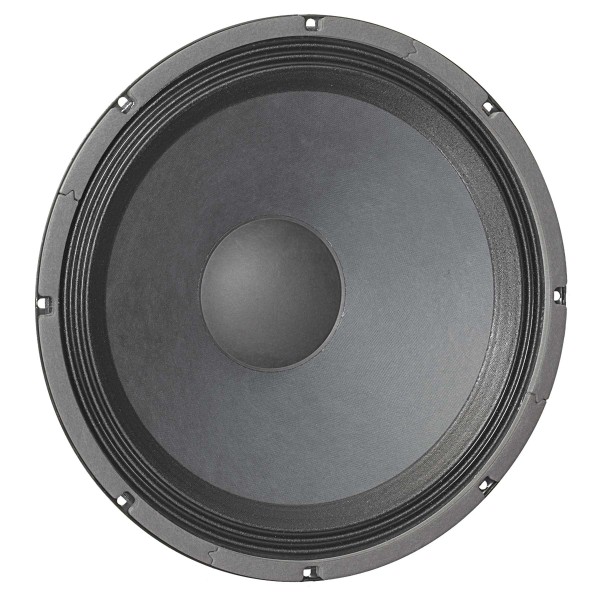

Kappa 15A - Eminence - 15" Woofer 8 ohm

202,00 €
Tasse incluse
Tempi di consegna variabili dai 4 ai 30 giorni

Woofer professionale 15 pollici Kappa 15A serie American standard; woofer con risposta ideale per basso elettrico in cassa reflex

·  Grandezza nominale driver: 15 pollici

·  Cono: carta

·  Magnete: ferrite

·  Bobina mobile: 76mm - rame

·  Cestello: acciaio

·  Sospensione: tela

·  Potenza: 450/900W

·  Sensibilità: 100.5 dB

·  Frequenza di risonanza: 33 Hz

·  Fattore di merito: 0.32

Quantità

Woofer professionale 15 pollici Kappa 15A serie American standard; woofer con risposta ideale per basso elettrico in cassa reflex

·  Grandezza nominale driver: 15 pollici

·  Cono: carta

·  Magnete: ferrite

·  Bobina mobile: 76mm - rame

·  Cestello: acciaio

·  Sospensione: tela

·  Potenza: 450/900W

·  Sensibilità: 100.5 dB

·  Frequenza di risonanza: 33 Hz

·  Fattore di merito: 0.32

Specifiche complete:

SPECIFICATION
Nominal Basket Diameter 15", 381 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 900 W
Watts 450 W
Resonance 33 Hz
Usable Frequency Range 52 Hz - 2.3 kHz
Sensitivity* 100.5 dB
Magnet Weight 80 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 3", 76 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 33 Hz
DC Resistance (Re) 5.22 Ω
Coil Inductance (Le) 1.05m H
Mechanical Q (Qms) 8.9
Electromagnetic Q (Qes) 0.33
Total Q (Qts) 0.32
Compliance Equivalent Volume (Vas) 321.3 liters / 11.35 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 343 cc
Mechanical Compliance of Suspension (Cms) 0.31 mm/N
BL Product (BL) 15.7 T-M
Diaphragm Mass Inc. Airload (MMs) 76 grams
Efficiency Bandwidth Product (EBP) 98
Maximum Linear Excursion (Xmax) 4 mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 11.6 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented 45-113 liters / 1.6-4 cu.ft.
Driver Volume Displaced 0.138 cu.ft. / 3.92 liters
Overall Diameter 15.16", 385.1 mm
Baffle Hole Diameter 13.87", 352.3 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 14.56", 369.8mm
Depth 6.13", 155.7 mm
Net Weight 17.6 lbs, 7.98 kg
Shipping Weight 19.8 lbs, 8.98 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap
