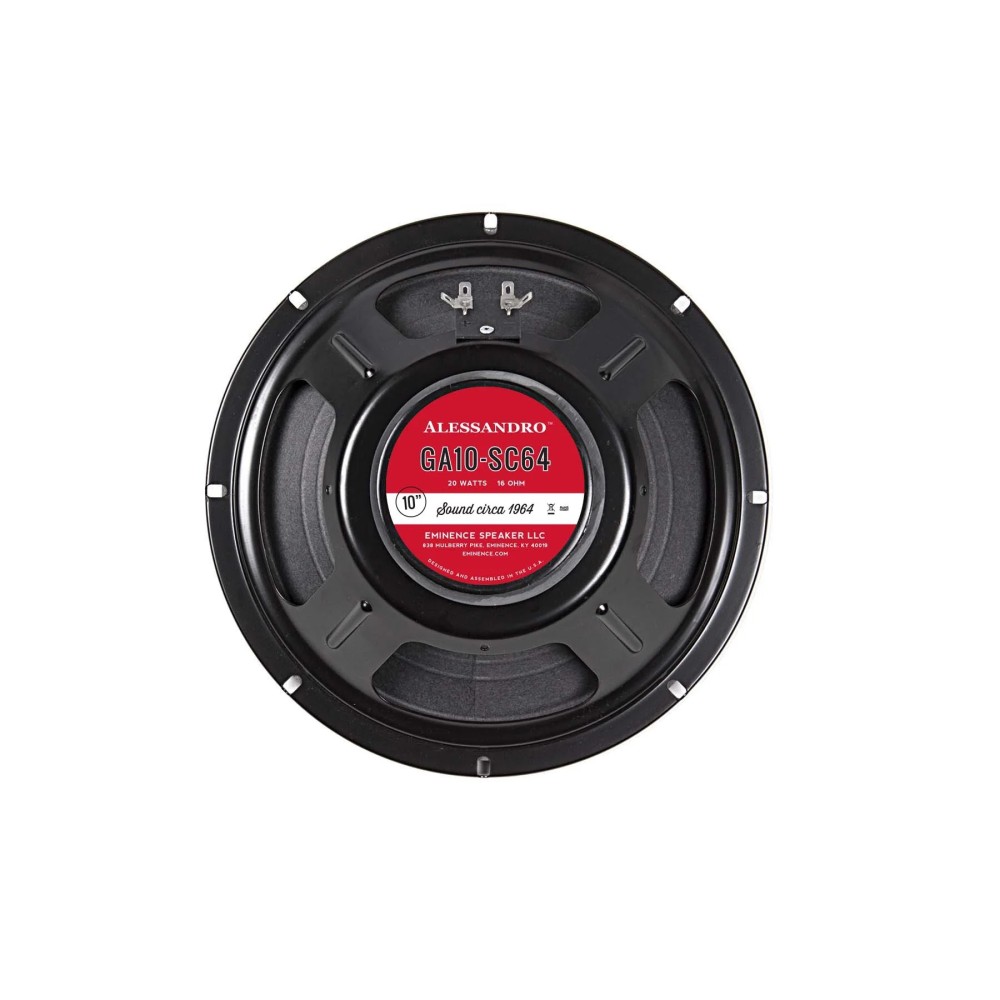

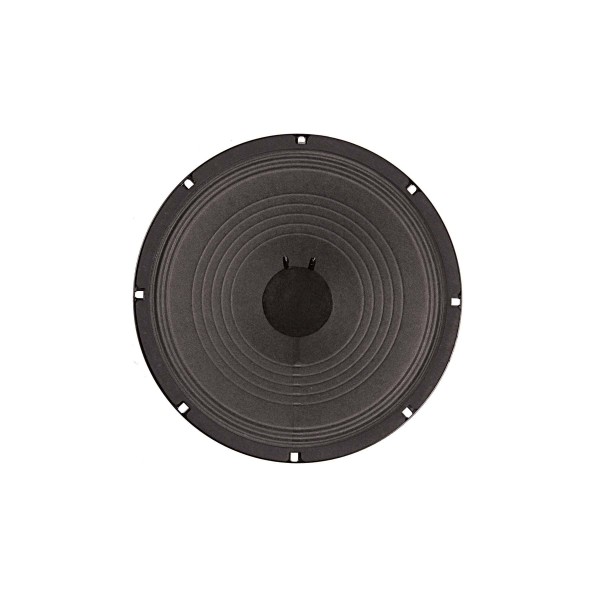

GA10 SC64 - 10" Signature Guitar speaker - 16 ohm

114,00 €

Tasse incluse

non disponibile al momento

Marca

GA10 SC64" impedenza 16 ohm, 20w massimi. Cono da 10 pollici, serie Signature, cestello American standard, magnete in ferrite. Ideato dal noto costruttore di amplificatori George Alessandro

Dinamica bassi: moderata

Timbrica bassi: asciutta/punchy

Dinamica medi: moderata

Timbrica medi: calda

Risposta alti: moderata

Sensibilità (volume): medio alta

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	16 Ω
Power Rating*
Program Power	N/A
Watts	20 W
Resonance	100 Hz

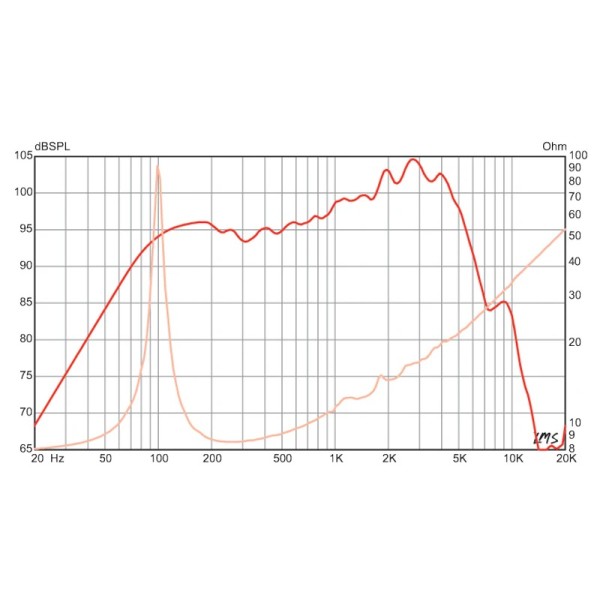

Usable Frequency Range	100 Hz - 5.5 kHz
Sensitivity*	98.2 dB
Magnet Weight	15 oz.
Gap Height	0.25", 6.4 mm
Voice Coil Diameter	1", 25 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	91.08 Hz
DC Resistance (Re)	10.22 Ω
Coil Inductance (Le)	0.48m H
Mechanical Q (Qms)	16.89
Electromagnetic Q (Qes)	1.38
Total Q (Qts)	1.28
Compliance Equivalent Volume (Vas)	33.49 liters / 1.18 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	58.2 cc
Mechanical Compliance of Suspension (Cms)	0.18 mm/N
BL Product (BL)	7.05 T-M
Diaphragm Mass Inc. Airload (MMs)	14 grams
Efficiency Bandwidth Product (EBP)	72
Maximum Linear Excursion (Xmax)	1.59 mm
Surface Area of Cone (Sd)	366.1 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.027 cu.ft. / 0.77 liters
Overall Diameter	10.11", 256.8 mm
Baffle Hole Diameter	9.13", 231.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	N/A
Mounting Holes Diameter	0.22", 5.6mm
Mounting Holes B.C.D.	9.6", 243.8mm
Depth	3.93", 99.7 mm
Net Weight	3.3 lbs, 1.5 kg
Shipping Weight	4.4 lbs, 2 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Paper former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Solid composition felt dust cap
