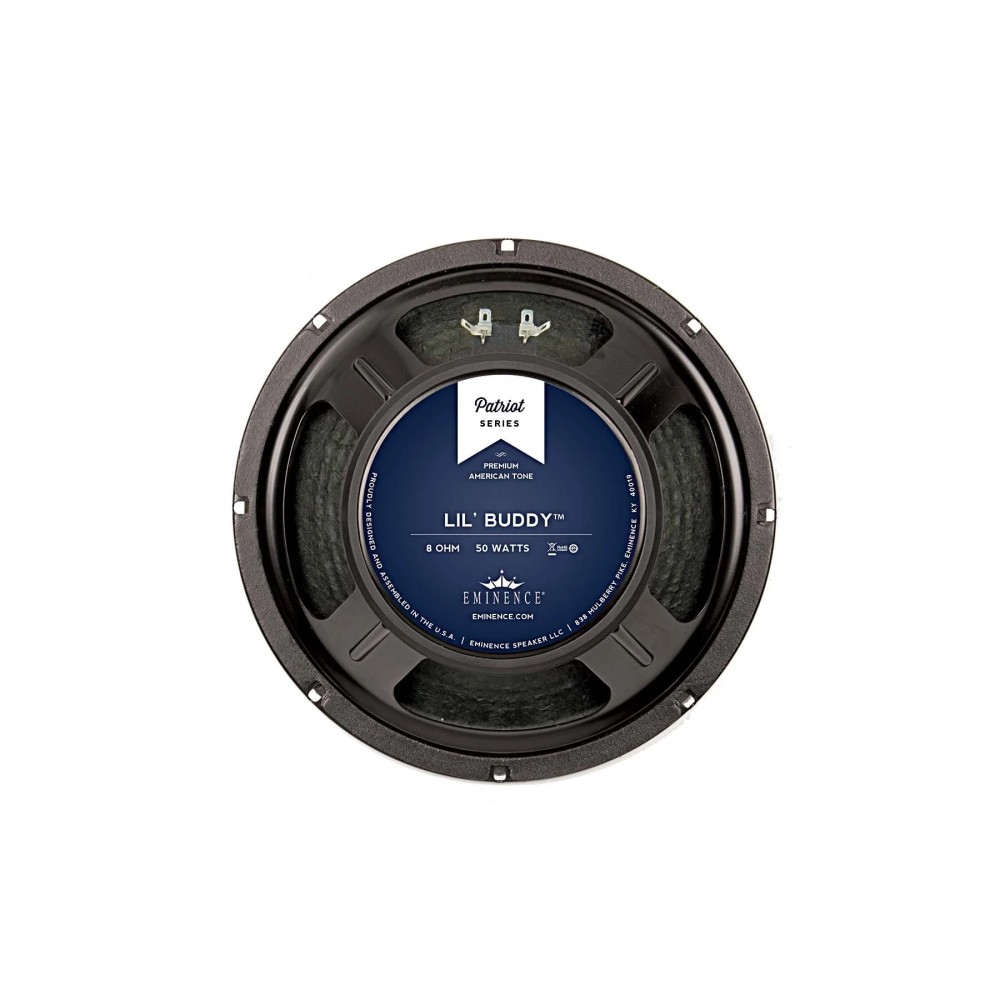

LIL' BUDDY - 10" Lead / Rythm Guitar speaker - 8 ohm

133,50 €

Tasse incluse Tempi di consegna dai 3 ai 4 giorni

Tempi di consegna dai 3 ai 4 giorni

Marca

LIL' BUDDY 10" impedenza 8 ohm, 50w massimi. Cono in canapa da 10 pollici, serie Patriot, cestello American standard, magnete in ferrite.

Dinamica bassi: aggressiva

Timbrica bassi: pieni e rotondi

Dinamica medi: moderata

Timbrica medi: calda

Risposta alti: velata

Sensibilità (volume): elevata

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	50 W
Resonance	149 Hz
Usable Frequency Range	80 Hz - 5 kHz
Sensitivity*	98.8 dB
Magnet Weight	30 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	1.75", 44 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	149 Hz
DC Resistance (Re)	6.31 Ω
Coil Inductance (Le)	0.46m H
Mechanical Q (Qms)	9.06
Electromagnetic Q (Qes)	0.93
Total Q (Qts)	0.84
Compliance Equivalent Volume (Vas)	10 liters / 0.35 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	29.3 cc
Mechanical Compliance of Suspension (Cms)	0.05 mm/N
BL Product (BL)	11.7 T-M
Diaphragm Mass Inc. Airload (MMs)	22 grams
Efficiency Bandwidth Product (EBP)	160
Maximum Linear Excursion (Xmax)	0.8 mm
Surface Area of Cone (Sd)	366.1 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.039 cu.ft. / 1.1 liters
Overall Diameter	10.11", 256.8 mm
Baffle Hole Diameter	9.13", 231.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.23", 5.8mm
Mounting Holes B.C.D.	9.6", 243.8mm
Depth	4.3", 109.2 mm
Net Weight	6.3 lbs, 2.86 kg
Shipping Weight	7.4 lbs, 3.36 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Paper former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket
Cone Composition	Hemp paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap
