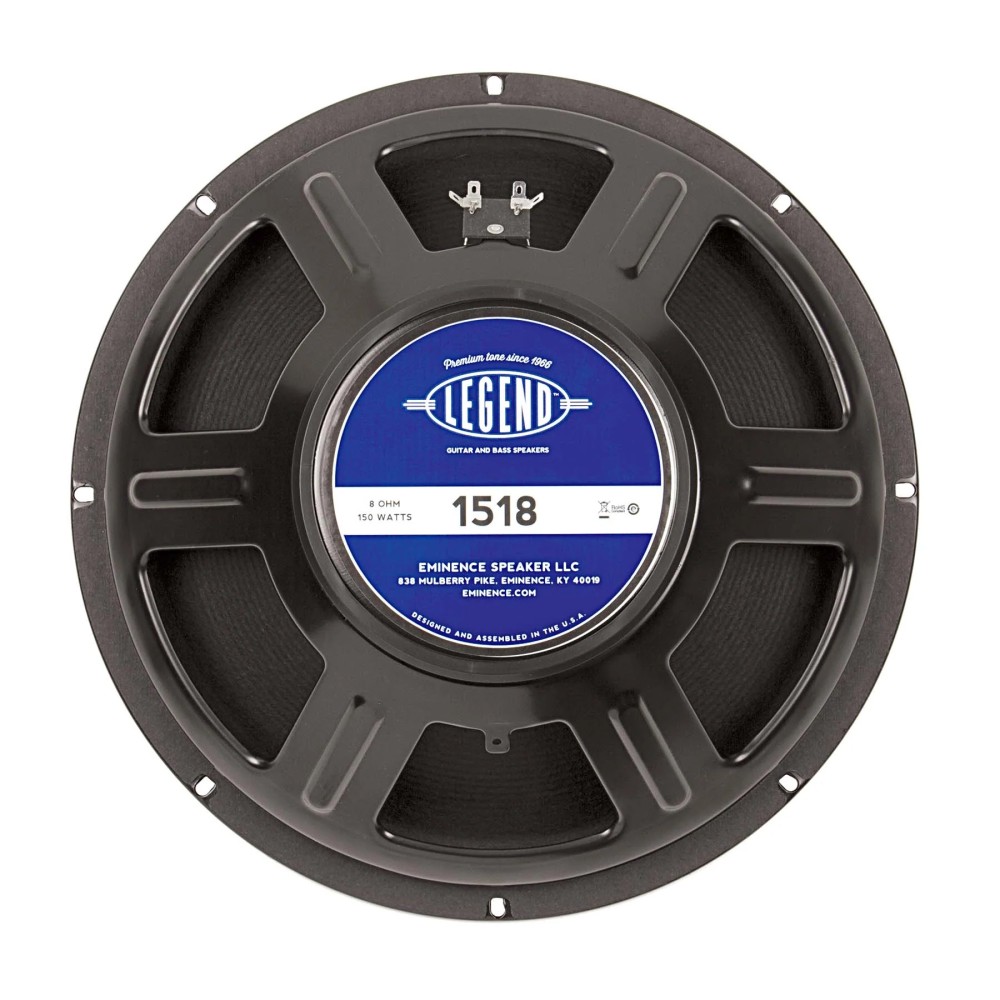

LEGEND 1518 - 15" Lead / Rythm Guitar speaker - 8 ohm

175,00 €

Tasse incluse

non disponibile al momento

Marca

LEGEND 1518 15" impedenza 8 ohm, 150w massimi. Cono da 15 pollici, serie Legend, cestello American standard, magnete in ferrite.

Dinamica bassi: aggressiva

Timbrica bassi: asciutta

Dinamica medi: moderata

Timbrica medi: calda

Risposta alti: moderata

Sensibilità (volume): elevata

SPECIFICATION
Nominal Basket Diameter	15", 381 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	150 W
Resonance	82 Hz
Usable Frequency Range	60 Hz - 4 kHz
Sensitivity*	103.4 dB
Magnet Weight	59 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	82 Hz
DC Resistance (Re)	7.16 Ω
Coil Inductance (Le)	0.86m H
Mechanical Q (Qms)	10.12
Electromagnetic Q (Qes)	1.02
Total Q (Qts)	0.93
Compliance Equivalent Volume (Vas)	65.4 liters / 2.31 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	65.9 cc
Mechanical Compliance of Suspension (Cms)	0.07 mm/N
BL Product (BL)	14.1 T-M
Diaphragm Mass Inc. Airload (MMs)	55 grams
Efficiency Bandwidth Product (EBP)	80
Maximum Linear Excursion (Xmax)	0.8 mm
Surface Area of Cone (Sd)	823.7 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	N/a
Vented	Acceptable
Driver Volume Displaced	0.128 cu.ft. / 3.62 liters
Overall Diameter	15.15", 384.8 mm
Baffle Hole Diameter	13.87", 352.3 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	N/A
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	14.56", 369.8mm
Depth	6.1", 154.9 mm
Net Weight	12.1 lbs, 5.49 kg
Shipping Weight	14.1 lbs, 6.4 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap
