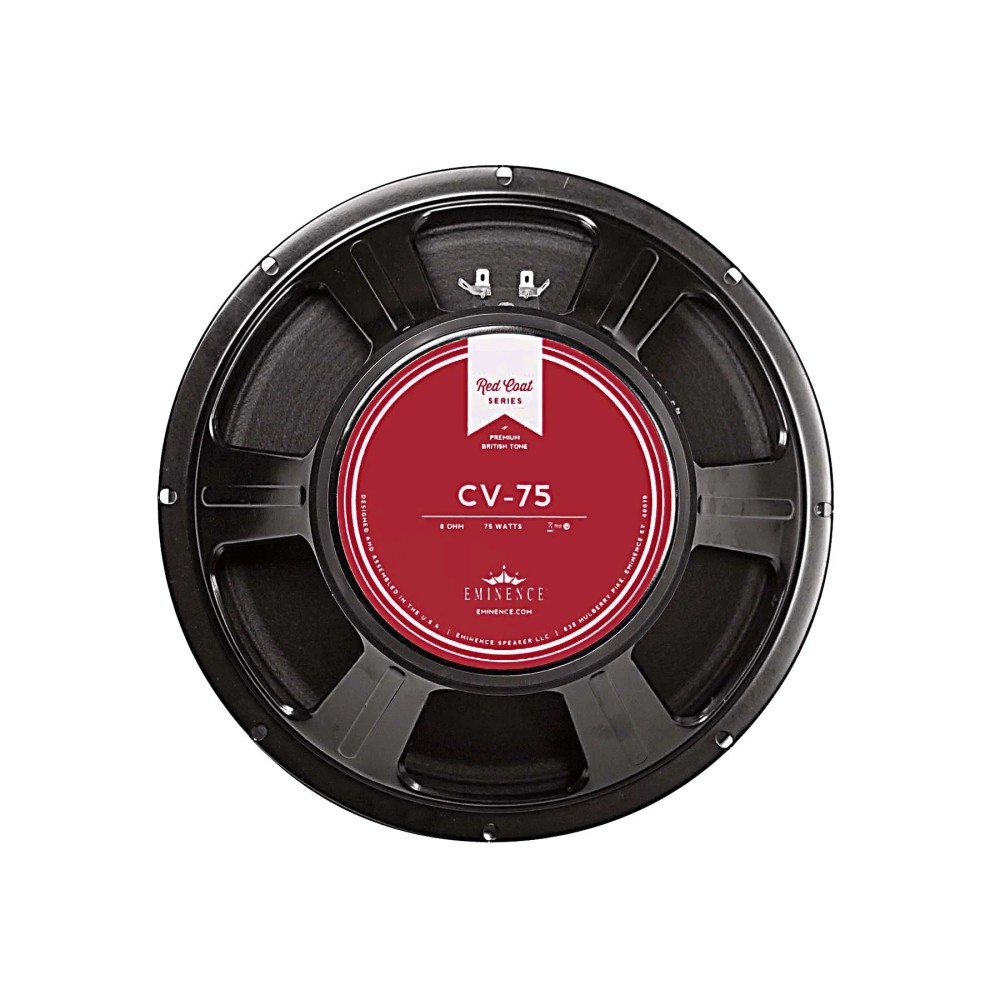

CV-75 - 12" Lead / Rythm Guitar speaker British - 8 ohm

144,00 €

Tasse incluse

non disponibile al momento

Marca

CV-75 12", impedenza 8 ohm, 75w massimi. Cono da 12 pollici, serie Redcoat, cestello American standard, magnete in ferrite.

Dinamica bassi: moderata

Timbrica bassi: asciutta

Dinamica medi: aggressiva

Timbrica medi: calda

Risposta alti: moderata

Sensibilità (volume): molto elevata

SPECIFICATION
Nominal Basket Diameter	12", 305 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	75 W
Resonance	79 Hz
Usable Frequency Range	80 Hz - 5.5 kHz
Sensitivity*	102.2 dB
Magnet Weight	56 oz.
Gap Height	0.313", 8 mm
Voice Coil Diameter	1.75", 44 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	79 Hz
DC Resistance (Re)	6.89 Ω
Coil Inductance (Le)	0.52m H
Mechanical Q (Qms)	15.07
Electromagnetic Q (Qes)	0.43
Total Q (Qts)	0.42
Compliance Equivalent Volume (Vas)	52.45 liters / 1.85 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	64 cc
Mechanical Compliance of Suspension (Cms)	0.14 mm/N
BL Product (BL)	15 T-M
Diaphragm Mass Inc. Airload (MMs)	28 grams
Efficiency Bandwidth Product (EBP)	183
Maximum Linear Excursion (Xmax)	1.23 mm
Surface Area of Cone (Sd)	519.5 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	N/a
Vented	N/a
Driver Volume Displaced	0.079 cu.ft. / 2.25 liters
Overall Diameter	12.17", 309.1 mm
Baffle Hole Diameter	11.13", 282.7 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.24", 6.1mm
Mounting Holes B.C.D.	11.75", 298.5mm
Depth	5.25", 133.4 mm
Net Weight	10.8 lbs, 4.9 kg
Shipping Weight	12.5 lbs, 5.67 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Nomex former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap
