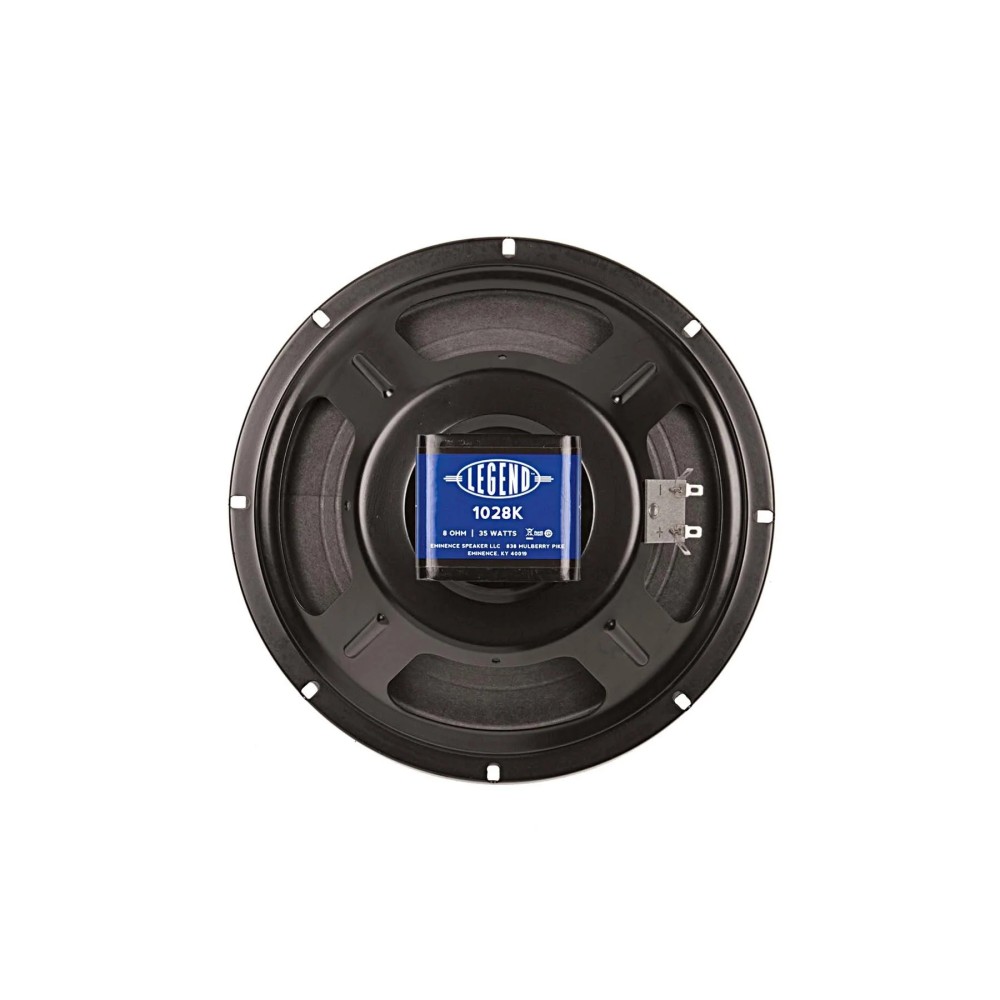

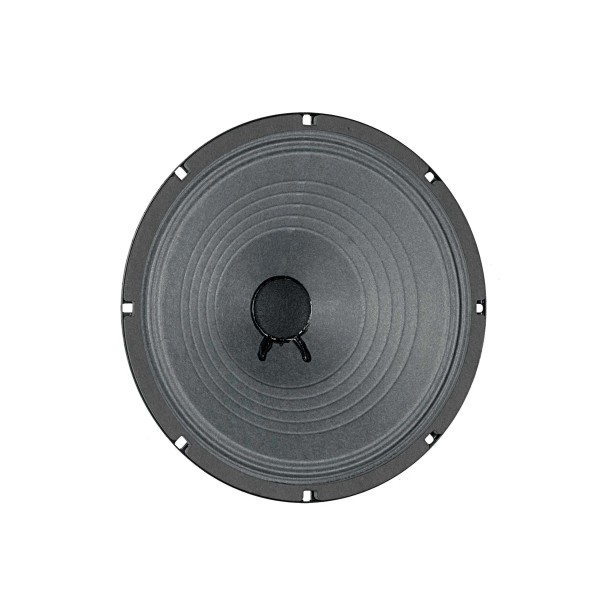

LEGEND 1028K - 10" Lead / Rythm Guitar speaker - 8 ohm AlNiCo

158,50 €

Tasse incluse Tempi di consegna dai 3 ai 4 giorni

Ultimi articoli in magazzino

Marca

LEGEND 1275 10", impedenza 8 ohm, 35w massimi. Cono da 10 pollici, serie Legend, cestello American standard, magnete in AlNiCo.

Dinamica bassi: velata

Timbrica bassi: asciutta

Dinamica medi: moderata

Timbrica medi: calda

Risposta alti: aggressiva

Sensibilità (volume): medio alta

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	35 W
Resonance	95 Hz
Usable Frequency Range	100 Hz - 5 kHz
Sensitivity*	97.4 dB
Magnet Weight	6 oz.
Gap Height	0.25", 6.4 mm
Voice Coil Diameter	1", 25 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	95 Hz
DC Resistance (Re)	5.8 Ω
Coil Inductance (Le)	0.51m H
Mechanical Q (Qms)	17.96
Electromagnetic Q (Qes)	1.61
Total Q (Qts)	1.47
Compliance Equivalent Volume (Vas)	31.5 liters / 1.11 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	72.4 cc
Mechanical Compliance of Suspension (Cms)	0.19 mm/N
BL Product (BL)	5.7 T-M
Diaphragm Mass Inc. Airload (MMs)	15 grams
Efficiency Bandwidth Product (EBP)	59
Maximum Linear Excursion (Xmax)	2.1 mm
Surface Area of Cone (Sd)	344.9 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.027 cu.ft. / 0.77 liters
Overall Diameter	10.11", 256.8 mm
Baffle Hole Diameter	9.13", 231.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	N/A
Mounting Holes Diameter	0.22", 5.6mm
Mounting Holes B.C.D.	9.6", 243.8mm
Depth	4.8", 121.9 mm
Net Weight	2.9 lbs, 1.32 kg
Shipping Weight	4 lbs, 1.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Alnico magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Solid composition felt dust cap
