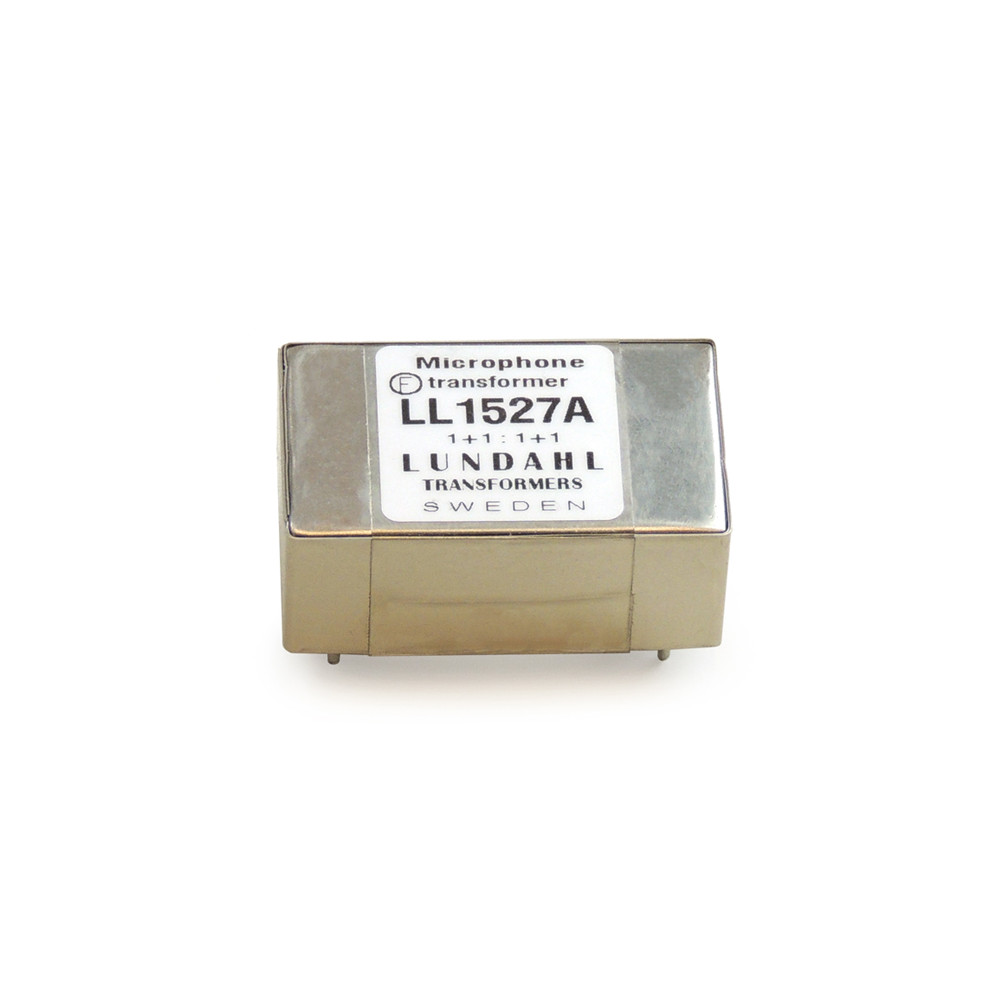

LL1527A Lundahl trasformatore d'isolamento

83,40 €
Tasse incluse
Tempi di consegna dai 6 ai 20 giorni massimo
Lundahl

Trasformatore per passare da configurazione sbilanciata (rca) a bilanciata (xlr), isolameto galvanico del segnale 1+1 : 1+1 +16dBU The "standard" problem solver. Ground isolation, MS decoding,
splitting 1 direct + 1 isolated outputs. Mic input 200:800 Ω.

LL1527A data

Quantità

LL1527A is a special split version of our classical microphone transformer LL1527, where the shields of the two coils are available on separate pins. This facilitates building of e.g. split boxes with galvanically isolated shields. The LL1527 is built-up from two coils, each with one primary and one secondary winding separated by an electrostatic shield. Each shield is connected to a separate pin. The core is a high permeability mu-metal core and the transformer is housed in a mu-metal can.

Lundahl
