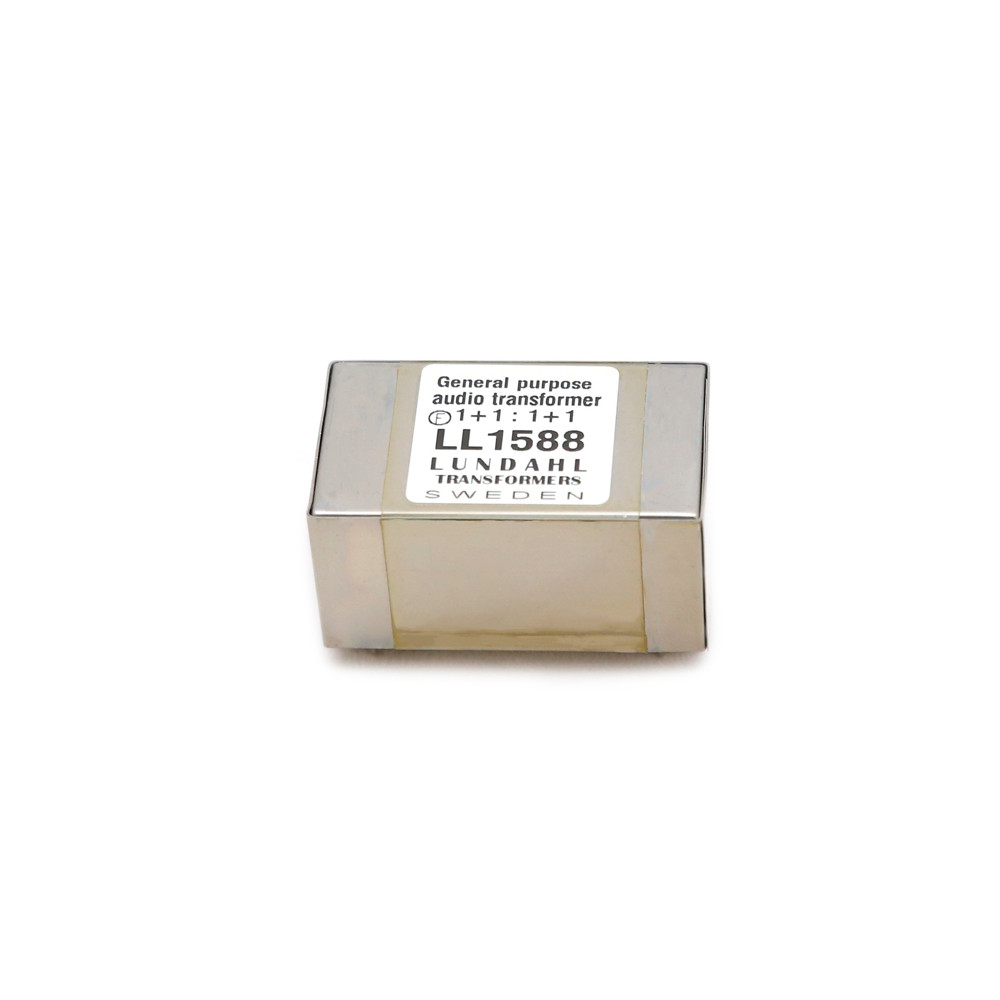

LL1588 Lundahl trasformatore d'isolamento

119,00 €
Tasse incluse
Tempi di consegna dai 6 ai 20 giorni massimo
Lundahl

Trasformatore per isolameto galvanico del segnale 1+1 : 1+1 +28dBU High level isolation applications 1:2 microphone input. Phase splitting.

LL1588 data

Quantità

LL1588 is a high-level general-purpose transformer which can be used for microphone or line input, for line output and for galvanic isolation. The windings are arranged to give perfect symmetry if the transformer is used in phase splitting input applications. The two coils structure also greatly improves immunity to external magnetic fields from e.g. power supplies and motors. Primary and secondary windings are separated by electrostatic shields. The core is a high permeability mu metal core. The transformer is housed in a mu-metal can.

Lundahl
