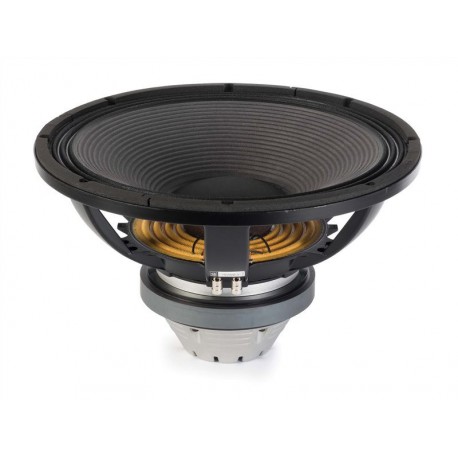

18TLW3000 Eighteen Sound Woofer PRO da 18"

18TLW3000 Eighteen Sound Woofer PRO da 18" 4-8 ohm

452,00 €
Tasse incluse Tempi di consegna dai 3 ai 4 giorni
Tempi di consegna dai 3 ai 4 giorni
Eighteensound

Woofer 18", 4-8ohm, potenza massima continua 3600W, 95dB, gruppo bobina mobile tetracoil (TTR) in rame, ottimizzato per massima dissipazione termica, cono trattato per contesti outdoor

Impedenza nominale: 8 ohm
Quantità

Woofer 18", 4-8ohm, potenza massima continua 3600W, 95dB, gruppo bobina mobile tetracoil (TTR) in rame, ottimizzato per massima dissipazione termica, cono trattato per contesti outdoor

18.0 In

00_05_46_712_los3wx9f
00_05_47_44_gsyftkok
Alternative/Current Model:
18NTLW5000

Features

  • 95 dB SPL 1W / 1m average sensitivity
  • 3600 W program power handling
  • 100 mm (4 in) Tetracoil dual voice coil, equivalent to a single coil diameter larger than 152 mm (> 6 in)
  • Ultra linear suspension behavior for excellent sound clarity
  • Symmetric flux density and inductance behaviour
  • Low noise forced air cooling design
  • Water repellent cone and epoxy coated plates for outdoor use
  • Suitable for vented, horn loaded and bandpass subwoofer design

Technologies

The 18TLW3000 is an 18 inch diameter high performance subwoofer, specifically designed for high SPL subwoofer applications in either a reflex, bandpass or horn loaded configuration. For optimum results we recommend the usage of power amplifiers able to deliver 3600W program power without clipping
18TLW3000 uses Eighteen Sound proprietary Tetracoil technology, where two different, axially separated magnetic gaps and two inside-outside 4" diameter voice coils are wound on the same former and suspended evenly in the two magnetic gaps.
The Tetracoil design key advantages are:
1) a symmetric flux density versus displacement behavior, that minimizes the even distortion products;
2) a very symmetric and flat inductance curve;
3) the equivalent voice coil diameter of a 4" Tetracoil speaker is greater than 6". Consequently heat dissipation occurs over a larger surface area, driving AES power handling up to 1800 W.
18TLW3000 design features include a large displacement suspension system which, in conjunction with a fiberglass reinforced, straight ribbed cone allows an ultra-linear piston action and provides full mechanical control across the entire working range.
In order to furtherly increase power handling and reduce power compression figure, a low density material air diffractor is placed into the backplate venting hole acting as a cooling system, increasing power handling capability and lowering the power compression figure.
18TLW3000 is able to perform properly under inclement weather conditions: the exclusive cone treatment improves pulp strength and gives water repellent properties to both sides of the membrane. In addition, magnetic structure metal plates coating is far more resistant than standard zinc coating to the corrosive effects of salts and oxidization.
